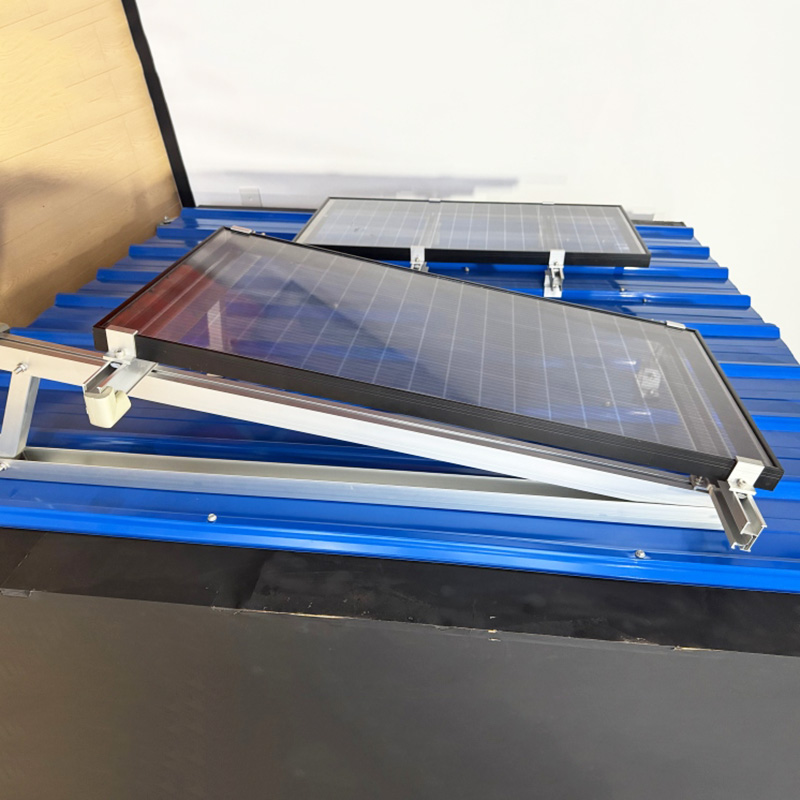

TPO Waterproof Roof Solar Mounting System
Features:
1. provide installation manuals and complete system solutions to save on-site construction time and costs.
2. The TPO roof solar mounting system supports different types of PV modules.
3. Flexible on-site adjustment, allowing vertical, east-west, southwest, and north-south orientation.
- Arcvolt
- Xiamen
- 15days
Tags:
Our TPO roof waterproof solar mounting system is designed for secure and efficient rooftop solar installation. With a stable PV mounting structure and easy-to-fit components, it ensures reliable solar panel mounting without compromising the integrity of TPO waterproof roofs. Whether for residential or commercial projects, this solution makes setting up a home solar system simple, safe, and long-lasting.
Key Features
Non-penetrating installation ensures roof integrity and waterproofing.
Modular structure enables quick construction and reduced labor cost.
Certified to global standards for reliable quality.
Customizable design suitable for various roof types.
10 years warranty with minimal maintenance.
Structure &Technical Parameters
The TPO Roof Solar Panel Mounting is built with high-strength aluminum alloy (AL6005-T5) and stainless steel (SUS304) fasteners, featuring an anodized surface for superior corrosion resistance. The system lifespan exceeds 25 years and withstands wind speeds up to 60 m/s and snow loads up to 1.5 kN/m². Solar PV Mounting System undergoes mechanical and waterproof testing, meeting AS/NZS 1170, JIS C8955, and IBC certifications.
| Installation Site | Color steel tile roof |
| Installation Base | Trapezoidal color steel roof with TPO waterproof membrane |
| Installation Angle | 0°-60° |
| Wind Load | 60 m/s |
| Snow Load | 1.5 KN/㎡ |
| Applicable Module Types | Framed and frameless |
| Module Layout | Landscape, Portrait |
| Design Standards | AS/NZS 1170, DIN 1055, JIS C8955:2017,International Building Code (IBC 2009)，California Building Code (CBC 2010) |
| Material of Mounting Structure | AL6005-T5 (Anodized) |
| Fastener Material | Stainless Steel SUS304 |
| Accessory Material | AL6005-T5 (Anodized) |
| Color | Natural silver or customized upon request |
| System Warranty | 10 years |

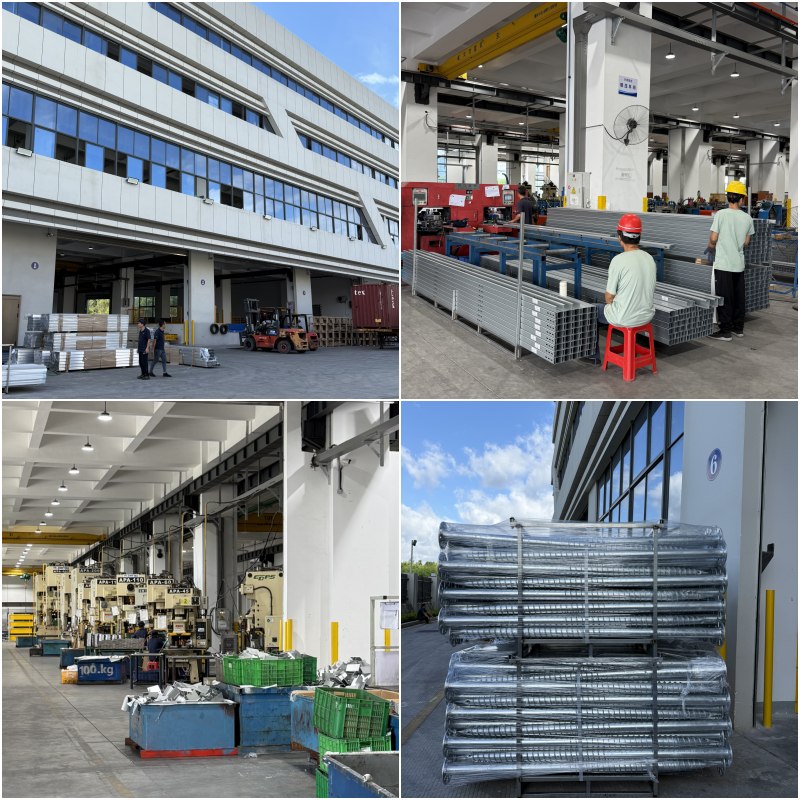

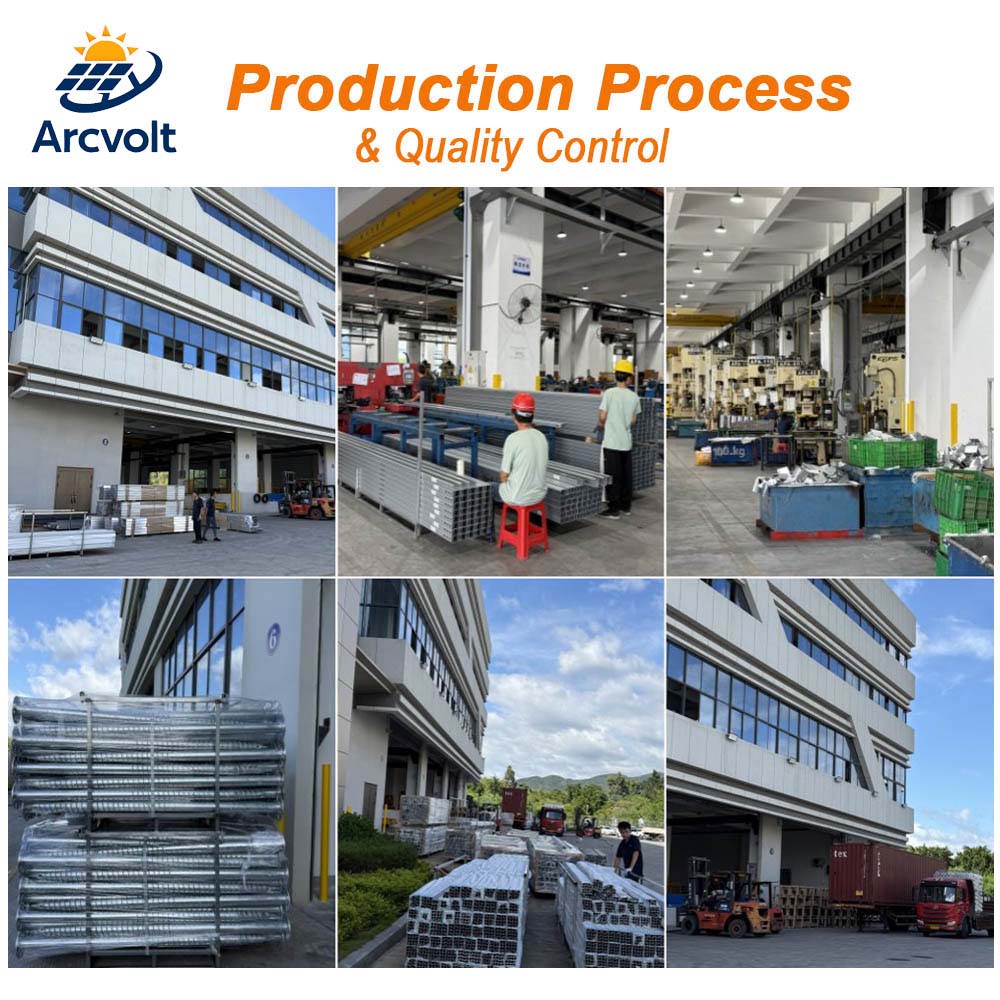

Manufacturing Process
Our production lines are equipped with advanced automation and precision extrusion machines to ensure dimensional accuracy and structural strength for Rooftop Solar Mounting System. CNC cutting and high-precision punching technologies maintain strict tolerances throughout manufacturing. All materials undergo chemical composition analysis and corrosion resistance testing to ensure outstanding performance even under harsh environmental conditions.
Before shipment, each TPO Roof Solar Panel Mounting undergoes assembly testing and mechanical verification to guarantee strong interconnections. The system is easy to assemble and position on-site, supported by a comprehensive installation manual and technical service for efficient and secure Rooftop Solar Mounting System installation.
