Photovoltaic Rooftop Mounting System
Features:
1. Our solar mounting system features a modular design that ensures fast installation and lower labor costs.
2. Built with high-strength materials, the solar rooftop mounting system delivers over 25 years of reliable performance, with excellent wind resistance up to 60 m/s and snow load capacity of 1.5 kN/m².
3. Compatible with 30–50mm solar modules, backed by a 10–15 year warranty for worry-free operation.
- Arcvolt
- Xiamen
- 15days
Tags:
Product Overview of Photovoltaic Rooftop Mounting System
The solar rooftop mounting system is an essential foundation for every successful rooftop solar installation. Designed to provide long-term stability and safety, this PV mounting structure is suitable for residential homes, commercial buildings, and even large-scale industrial projects. By combining high-strength AL6005-T5 aluminum alloy, stainless steel 304, and galvanized steel, the photovoltaic rooftop mounting system delivers outstanding corrosion resistance, structural reliability, and durability that can last for decades.
One of the biggest advantages of this solar panel mounting solution is its adaptability. Whether your property has tile roofs, metal sheet roofs, or flat concrete rooftops, the system can be customized to fit perfectly. The adjustable tilt angle (0°–60°) ensures maximum sunlight capture, helping every home solar system achieve optimal energy output while maintaining excellent performance year-round.
Key Advantages of Solar Rooftop Mounting System
Modular design for fast installation and reduced labor costs
High-strength materials with a service life of ≥ 25 years
Wind resistance up to 60 m/s, snow load capacity up to 1.5 kN/m²
Compatible with mainstream solar modules (30–50 mm thickness)
Certified with international standards (AS/NZS 1170, JIS C8955, IBC, etc.)
10 years warranty to minimize O&M risks
Applications

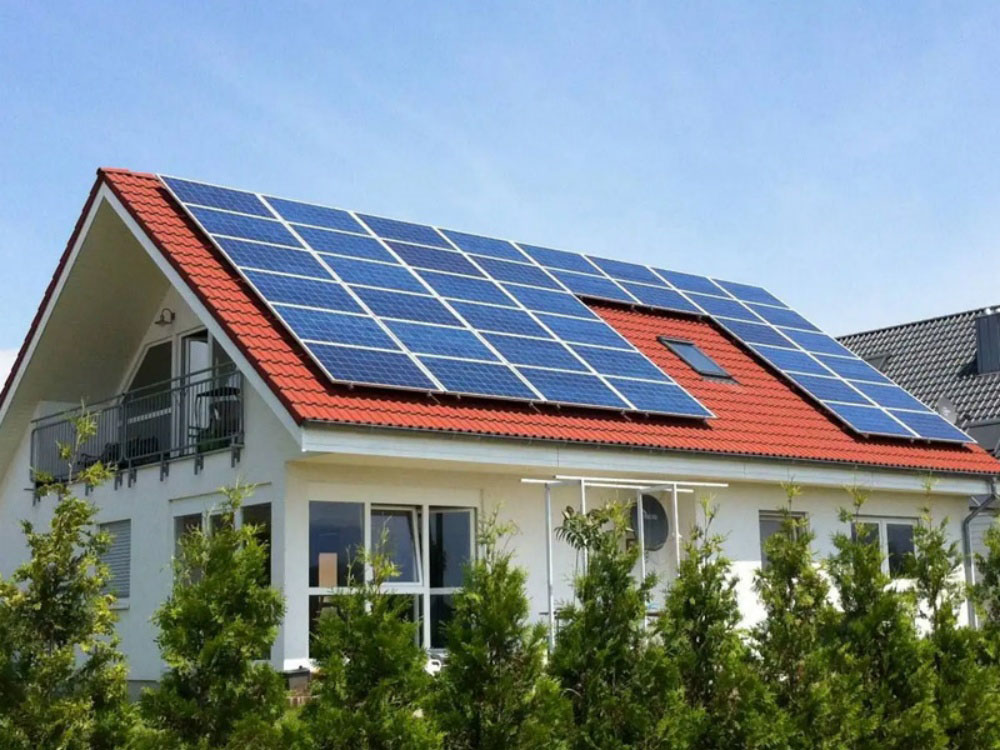

Residential rooftop solar systems
Commercial building solar projects
Industrial facility distributed PV plants
Flat and sloped rooftop solar installations
Technical Specifications of Solar Panel Mounting
| Parameter Item | Specification |
| Product Name | Photovoltaic Rooftop Mounting System |
| Applicable Roof Types | Tile Roof, Metal Roof, Flat Roof, Sloped Roof |
| Material Composition | AL6005-T5 Aluminum Alloy / Stainless Steel 304 / Galvanized Steel |
| Surface Treatment | Anodized ≥10μm / Hot-dip Galvanized ≥80μm |
| Installation Angle | 0°–60° (adjustable) |
| Wind Resistance | Up to 60 m/s |
| Snow Load Capacity | Up to 1.5 kN/m² |
| Service Life | ≥ 25 years |
| Warranty Period | 10 years |
| Compatible Module Dimensions | Standard PV modules (30–50 mm thickness) |
| Design Standards | AS/NZS 1170, JIS C8955, DIN 1055, IBC, etc. |

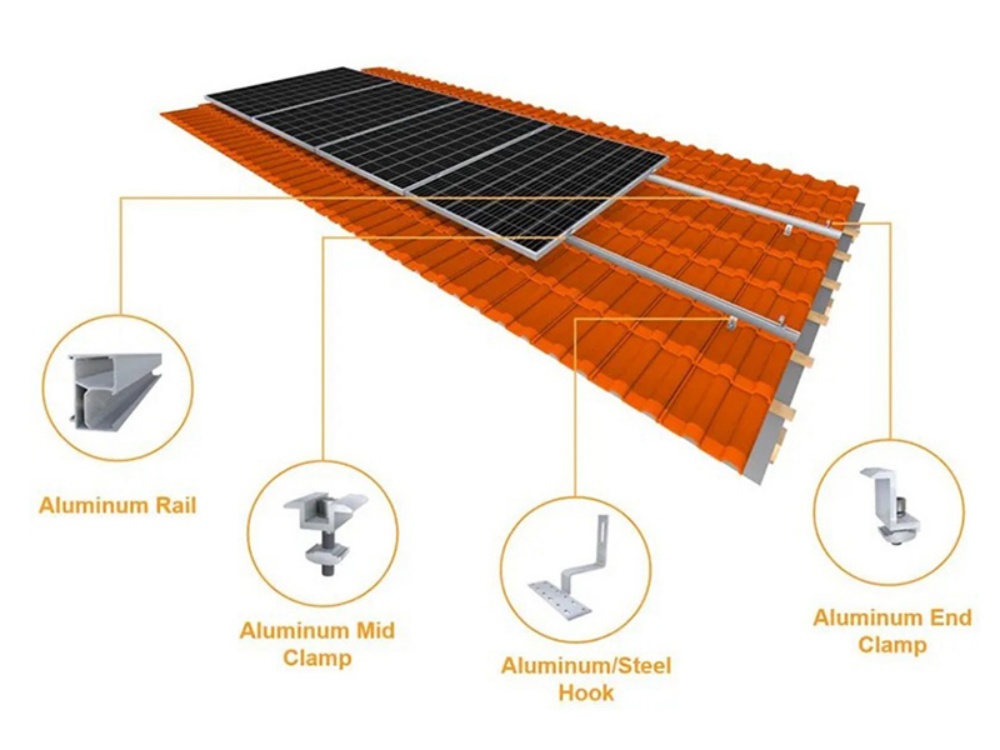

| Installation Method | Rail-based / Clamp / Customized |
FAQ
Q1: What types of tile roofs are compatible with the solar roof mounting system?

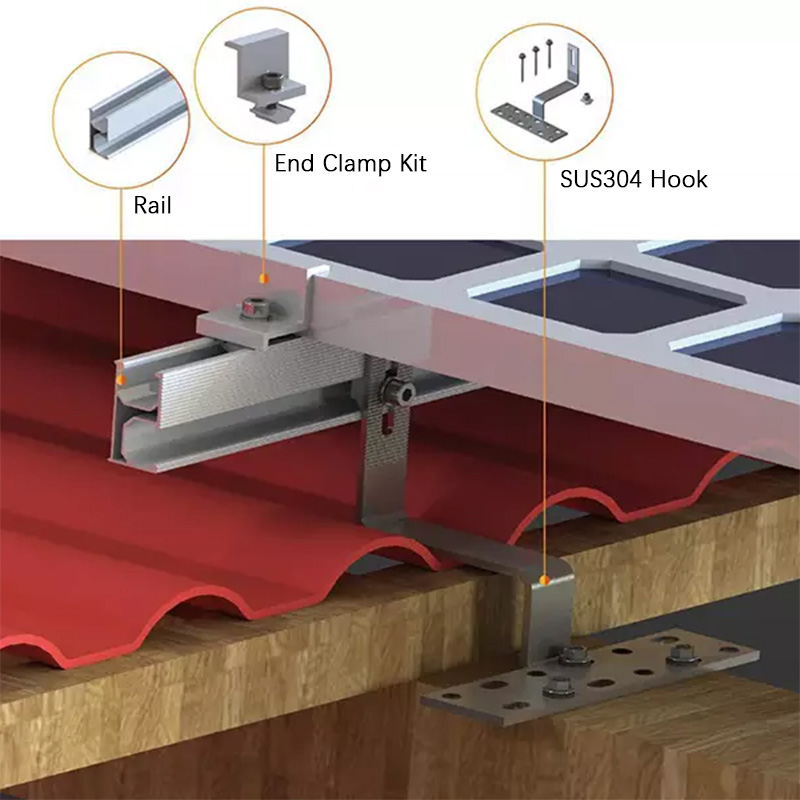

A1: It fits flat tiles, Spanish tiles, Roman tiles, and concrete tiles with adjustable hooks.
Q2: Is the solar tile roof mounting system suitable for coastal or humid environments?
A2: Yes. The system uses anti-corrosion aluminum and stainless steel, ideal for coastal areas.
Q3: How long is the tile roof PV bracket warranty?
A3: Arcvolt offers up to 15 years warranty for the Tile Roof Mounting System.
