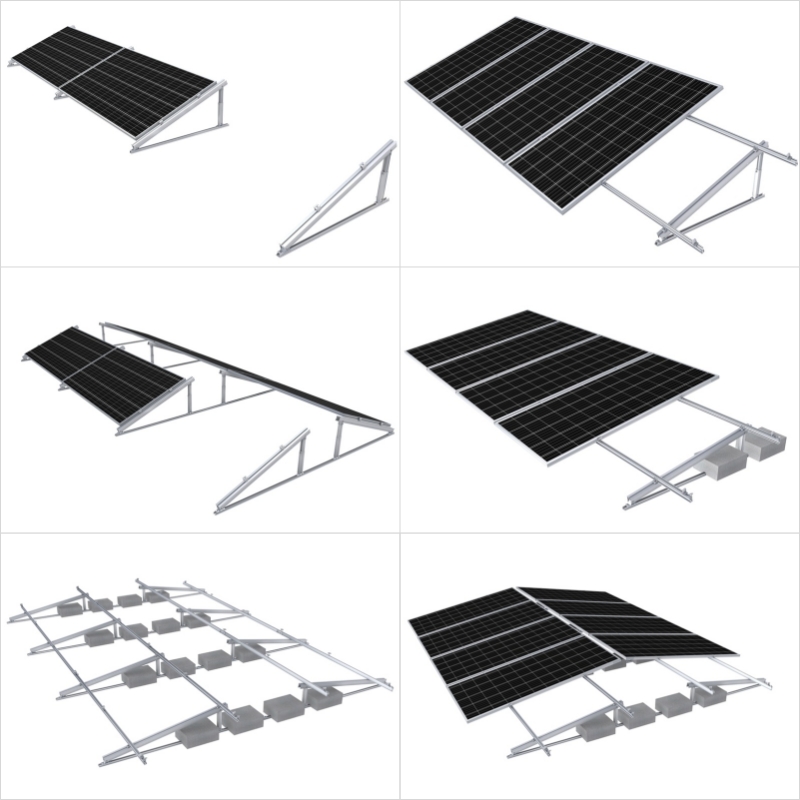

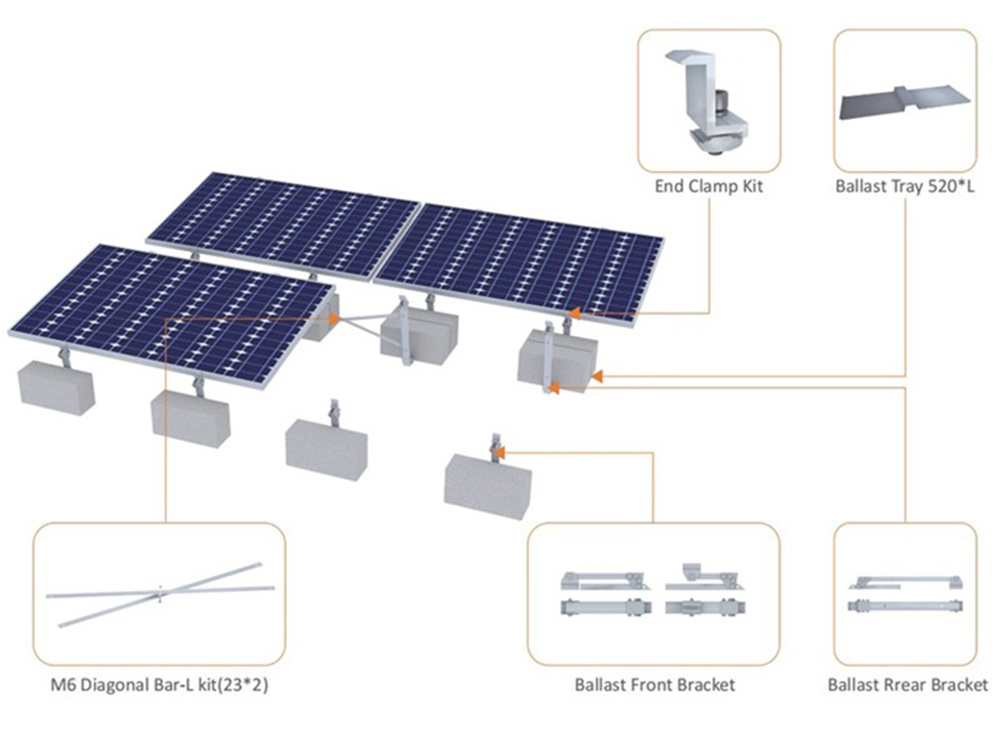

Flat Roof Ballasted Solar Mounting System
Features:
1. Flat roof solar mounting with high durability to ensure system strength.
2. Non-penetrating flat roof solar mounting.
3. Rooftop solar system is easy to install.
4. Small package design of PV mounting structure for easy transportation
- Arcvolt
- Xiamen
- 15days
Tags:
Product Overview
In today's fast-growing clean energy market, the flat roof solar mounting system has become a preferred choice for both residential and commercial users. The flat roof solar mounting requires no roof penetration, ensuring structural integrity while providing strong support for solar panels. Whether for a home rooftop or a commercial building, rooftop solar system offers an efficient and reliable PV mounting structure for long-term energy savings.
Key Advantages

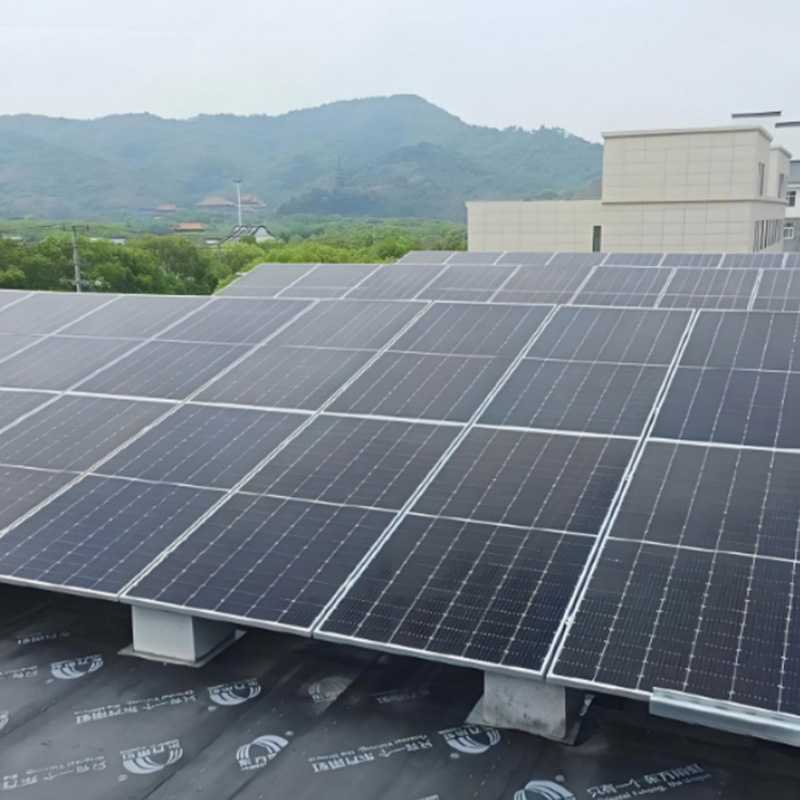

Non-Penetrating Design – Uses ballast to secure the rooftop solar system, preventing roof damage.
Quick Installation – Modular structure saves valuable installation time.
Wide Compatibility – Suitable for concrete flat roofs and metal sheet rooftops.
High Stability – Engineered to withstand harsh weather conditions.
Cost-Effective – Reduces labor and maintenance costs while maximizing ROI.
Applications

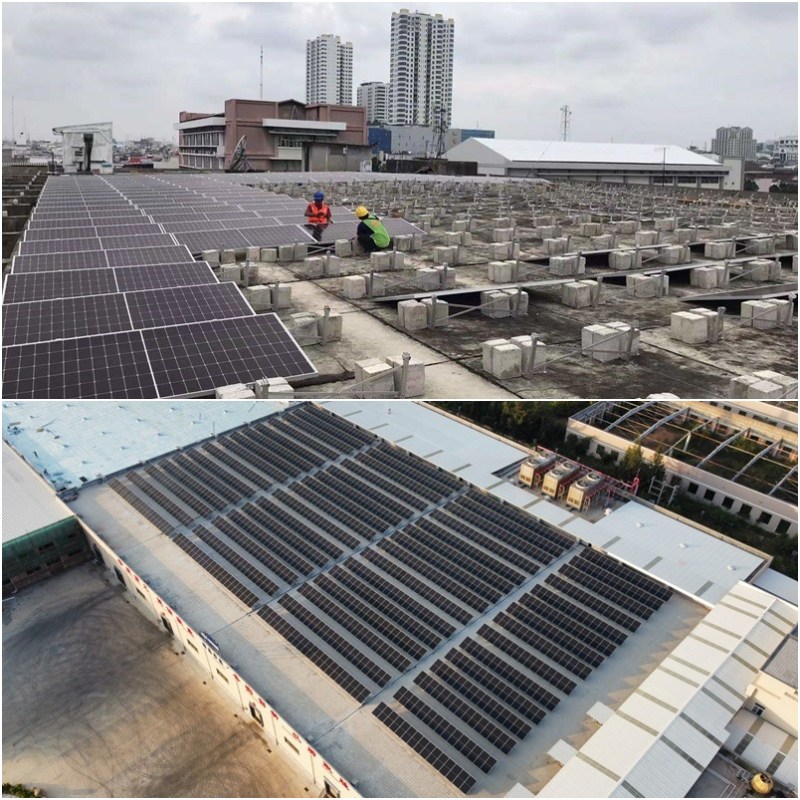

The ballasted solar mounting system is designed for a wide range of applications, including residential rooftops, office buildings, shopping malls, schools, and industrial facilities. Thanks to its flexible design, it supports various solar module tilt angles, achieving optimal energy output. As solar energy adoption accelerates worldwide, this solution is becoming a cornerstone of rooftop solar system installations.
We don't just offer high-quality flat roof solar mounting solutions—we also provide complete installation manuals and technical support. From design to delivery, every step is carefully managed to ensure a secure and efficient flat roof solar installation. With years of industry expertise, our team can tailor the right PV mounting structure for your specific roof conditions, helping you achieve a truly sustainable energy investment.
Technical Information
| Material | AL 6005-T5/SUS304 |
| Surface Treatment | Average Anodizing Coating Thickness 10μm |
| Modules Type | Framed/ Frameless |
| Wind Speed | Up to 45m/s |
| Snow Load Capacity | Up to1.5KN/m² |
| Adjustable Tilt Angle | 0°~45° |
| Panel Orientation | Landscape/Portrait |
| Seismic Load | Lateral Seismic Factor: Kp=1;Seismic Coefficient: Z=1;Use Coefficient: I=1 |
| Design Standards | JIS C 8955:2017;AS/NZS 1170;DIN1055;ASCE/SEI 7-05; International Building Code: IBC 2009 |
| Warranty | 10 Years |
| Duration | More than 25 years |
FAQ
Q1: Does the ballast system damage the roof surface?
A1: No, it’s a non-penetrating structure that protects the roof from leaks and damage.
Q2: What materials are the ballast frames made of?
A2: High-strength anodized aluminum and stainless-steel fasteners for corrosion resistance.
Q3: Can the tilt angle be customized?
A3: Yes, Arcvolt supports multiple tilt angles (5°, 10°, 15°) based on project needs.
