Non-Penetrating Solar Metal Roof Mount Solution Solar Roof Mounting
Featrues:
1. Easy to fix
2. Multiple matching schemes, flexible selection of schemes
3. Convenient and flexible installation

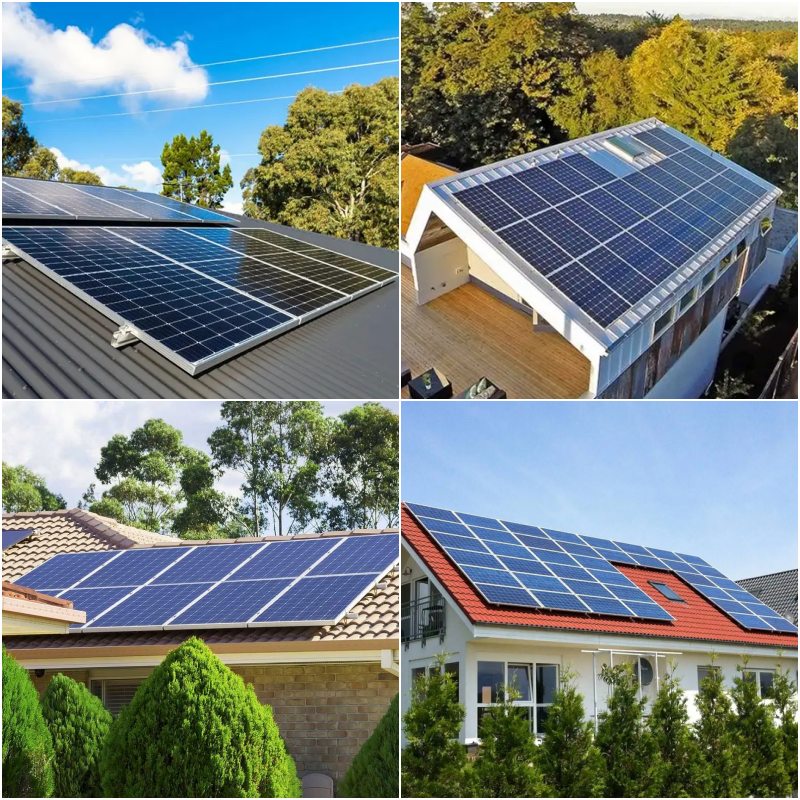

4. Suitable for both residential and commercial roofs
- Arcvolt
- Xiamen
- 15days
Product Overview of Solar Roof Mounting

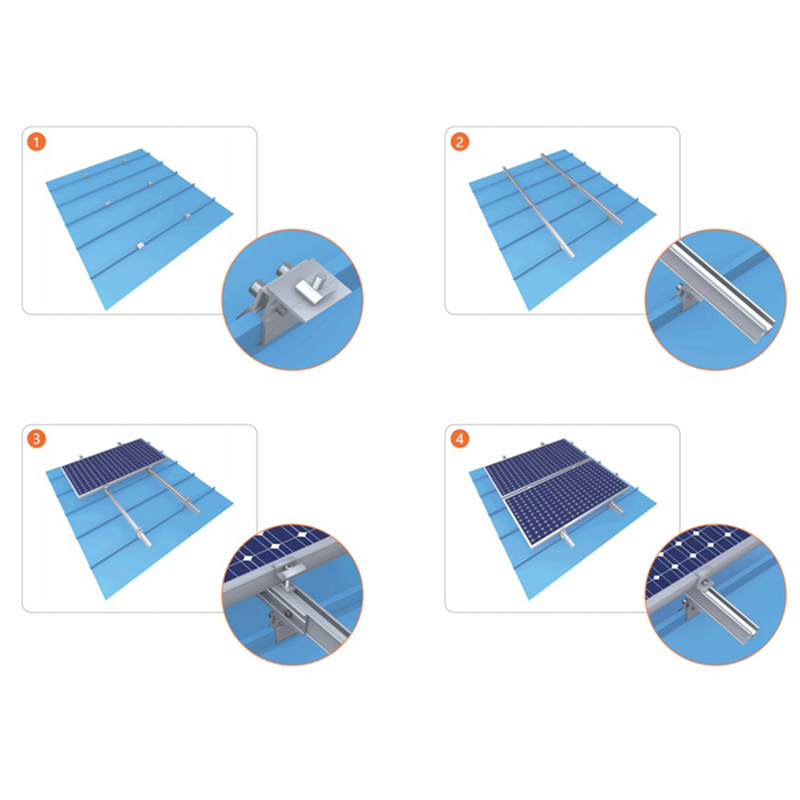

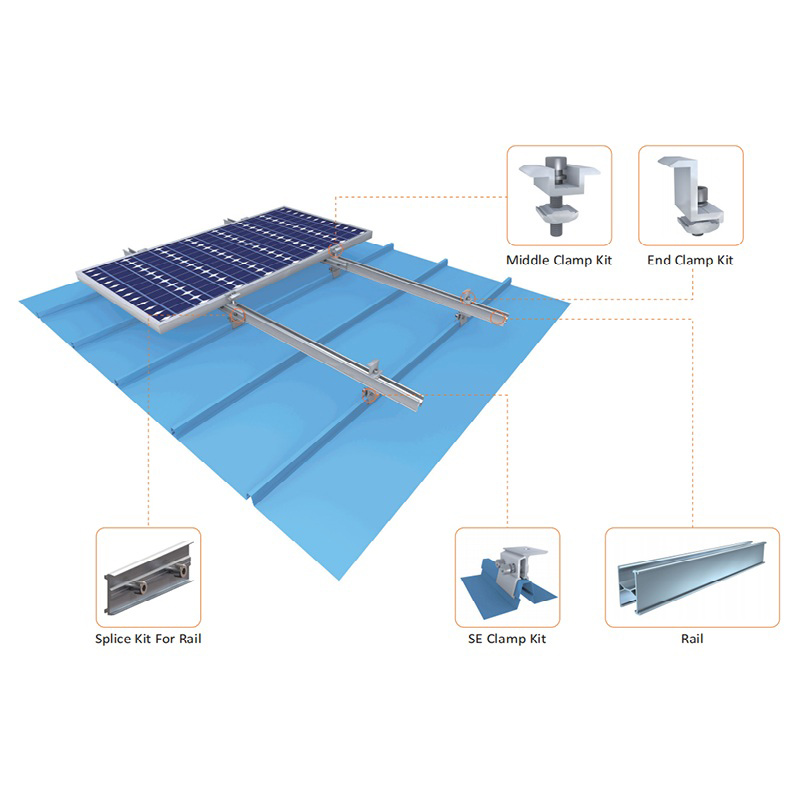

The Arcvolt Non-Penetrating Solar Metal Roof Mount Solution is designed to protect roof integrity while ensuring reliable PV installation. Using standing seam clamps and adjustable aluminum rails, it requires no roof drilling, preventing water leakage and structural damage. The system is ideal for industrial and commercial projects seeking long-term durability and efficient installation.
Advantages of Solar Roof Mounting
Non-Penetrating Solar Metal Roof Mount Solution is widely used to install distributed photovoltaic power system in kliplok,standing seam,lysaght roof, etc.,which is designed for different roof types and structures. Different roof types shall use different roof clamps that do not damage its waterproof designof the roof, which largely avoid damage the roof from installing solar pv power system on it. This is themost widely-used solar metal roof mount solution in the market for distr ibuted photovoltaic power system.
This type of installation not only avoids damage to the roof structure as no drilling is required, but it is also faster and easier than traditional installation methods. If the solar panels need to be moved or replaced, this mounting method can also be easily removed and reinstalled. Overall, the Non-Penetrating Solar Metal Roof Mount Solution is an innovative solar mounting solution that provides a fast, safe, and environmentally friendly installation method for all types of metal roofs.
All brackets and accessories in accordance with Australian AS/NZS1170 and other international standards, and is suitable for use in a variety of climates and has a service life of up to 25 years.
Features of Solar Roof Mounting
Suitable for various waveform colored steel tile roofs
Flexible matching of multiple accessory programs
Pre assembled kit for shipment, easy and efficient installation
Standardized products in stock for fast delivery
Technical Specifications
| Material Composition | AL6005-T5 Aluminum Alloy / Stainless Steel 304 / Galvanized Steel |
| Surface Treatment | Average Anodizing Coating Thickness 10μm |
| Modules Type | Framed/ Frameless |
| Wind Speed | Up to 45m/s |
| Snow Load Capacity | Up to1.5KN/m² |
| Installation Angle | 0°~45°(adjustable) |
| Panel Orientation | Landscape/Portrait |
| Seismic Load | Lateral Seismic Factor: Kp=1;Seismic Coefficient: Z=1;Use Coefficient: I=1 |
| Design Standards | AS/NZS 1170, JIS C8955, DIN 1055, IBC, etc. |
| Warranty Period | 10 Years |
| Service Life | ≥ 25 years |
FAQ
Q1: How does the non-penetrating design prevent leaks?
A1: The standing seam clamps secure the rail without drilling, maintaining the roof’s waterproof membrane.
Q2: Is the system suitable for strong wind areas?
A2: Yes, Arcvolt systems are tested for high wind and snow loads under international standards.
Q3: Can it be customized for different roof types?
A3: Yes, the system offers adjustable clamps for various roof shapes and slopes.
