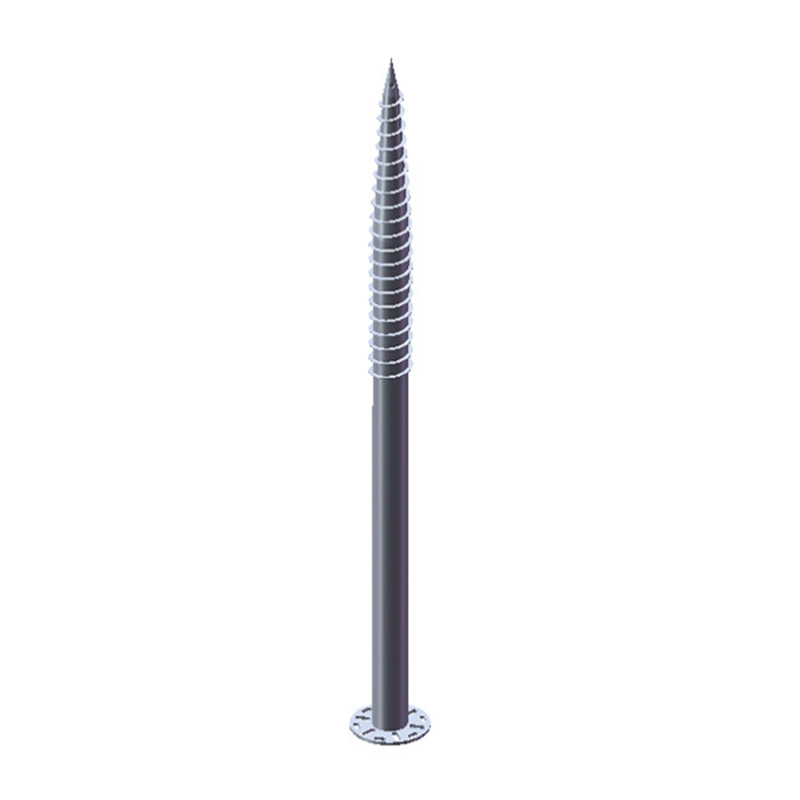

Ground Screw Pile for Solar Ground Mounting System
Features:
1. Our ground screw pile enables quick and easy installation without concrete work, greatly reducing project time.
2. Designed with a patented spiral structure, the ground screw pile provides strong ground grip and excellent load capacity.
3. The ground screw pile can be removed, relocated, and reused, making it a sustainable choice for modern solar mounting systems.
- Arcvolt
- Xiamen
- 15days
Tags:
Gound Screw Pile
The ground screw pile is an innovative and eco-friendly foundation solution widely used in solar mounting accessories, solar farms, outdoor structures, and infrastructure projects. Compared with traditional concrete foundations, ground screw piles require no digging or curing, offering faster installation, flexible adjustment, and strong load-bearing capacity under various soil conditions. It provides reliable support for solar ground mounting systems and ground screws for solar mounting, making it a preferred choice in modern solar projects.
Product Parameters
We offer a wide range of ground screw pile sizes and specifications with full customized service to meet different project requirements. Common diameters range from Φ60mm to Φ140mm and lengths from 1200mm to 3000mm. The material is Q235 hot-dip galvanized steel, featuring a zinc coating thickness of ≥80μm for superior corrosion resistance and long-term durability.
| Pipe Diameter(mm) | Thickness（mm） | Flange Diameter(mm) | Length(mm) | Material |
| 76 or customized | 3.0-3.5 | 200 or customized | 1200 | Hot dip galvanized steel(≥80μm) |
| 1600 | ||||
| 1800 | ||||
| 2000 | ||||
| 2500 | ||||
| 3000 |
Product Advantages
Fast Installation – No concrete required, significantly reduces construction time.
High Stability – Patented spiral design increases ground grip, suitable for various terrains.
Reusable & Eco-friendly – Can be removed and reused, minimizing environmental impact.
High Compatibility – Fits different solar ground mounting systems and PV structures.
Fully Customizable – Tailored solutions based on terrain and load requirements.

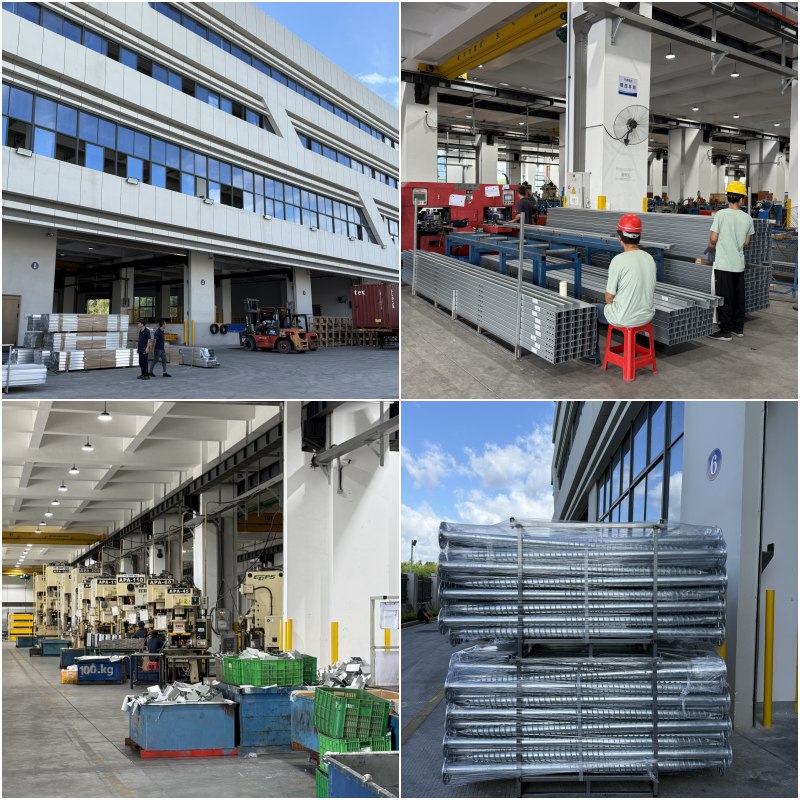

Manufacturing Process
Each ground screw pile is manufactured through a rigorous process, including raw material inspection, CNC cutting, friction welding, forming correction, and hot-dip galvanization. We use advanced automated welding and CNC forming technologies to ensure precise spiral angles, consistent weld strength, and high vertical accuracy. All production follows ISO9001 quality management standards to guarantee the reliability and consistency of every Solar panel mounting ground screw we deliver.
Application Scenarios

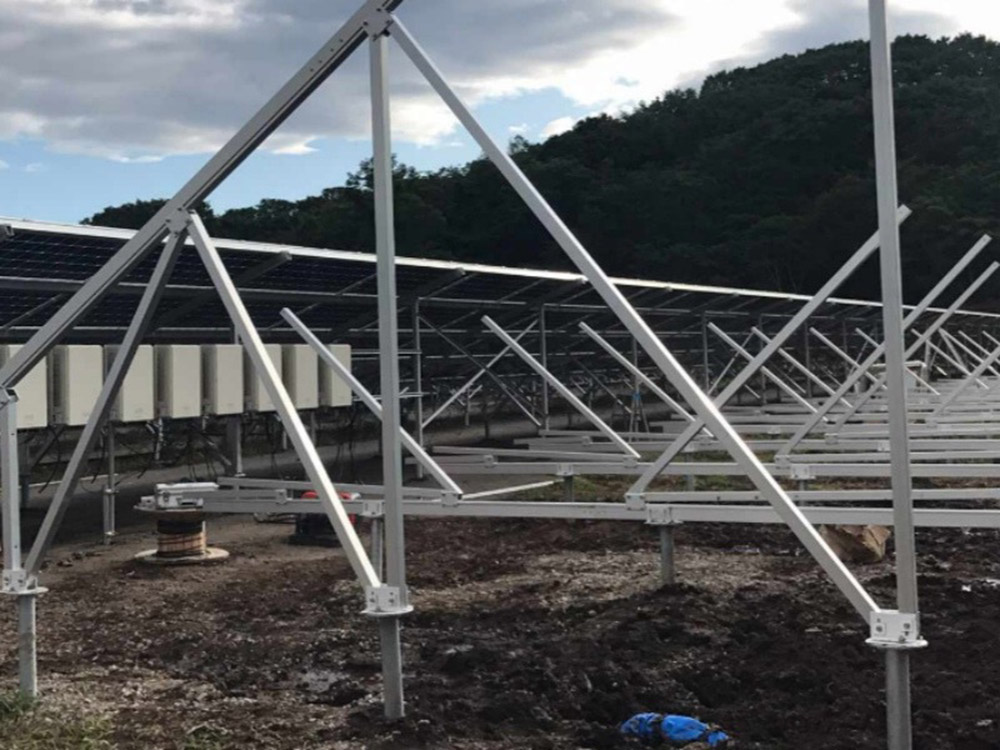

The ground screw pile is widely applied in solar ground mounting systems, carport foundations, agricultural PV greenhouses, billboard installations, wooden houses, and fencing projects. With superior corrosion resistance and flexible installation, the ground screw pile performs well on diverse terrains, including sandy soil, clay, frozen ground, and rocky areas.
As a professional solar ground mounting system and ground screw pile manufacturer, we are dedicated to delivering high-quality, customizable, and sustainable solutions. Whether for ground-mounted solar projects or outdoor foundation works, our products ensure strong support and faster installation efficiency.
